Measure the width
Measure the existing finished leaf edge-to-edge at the top, middle and bottom. Record all readings.

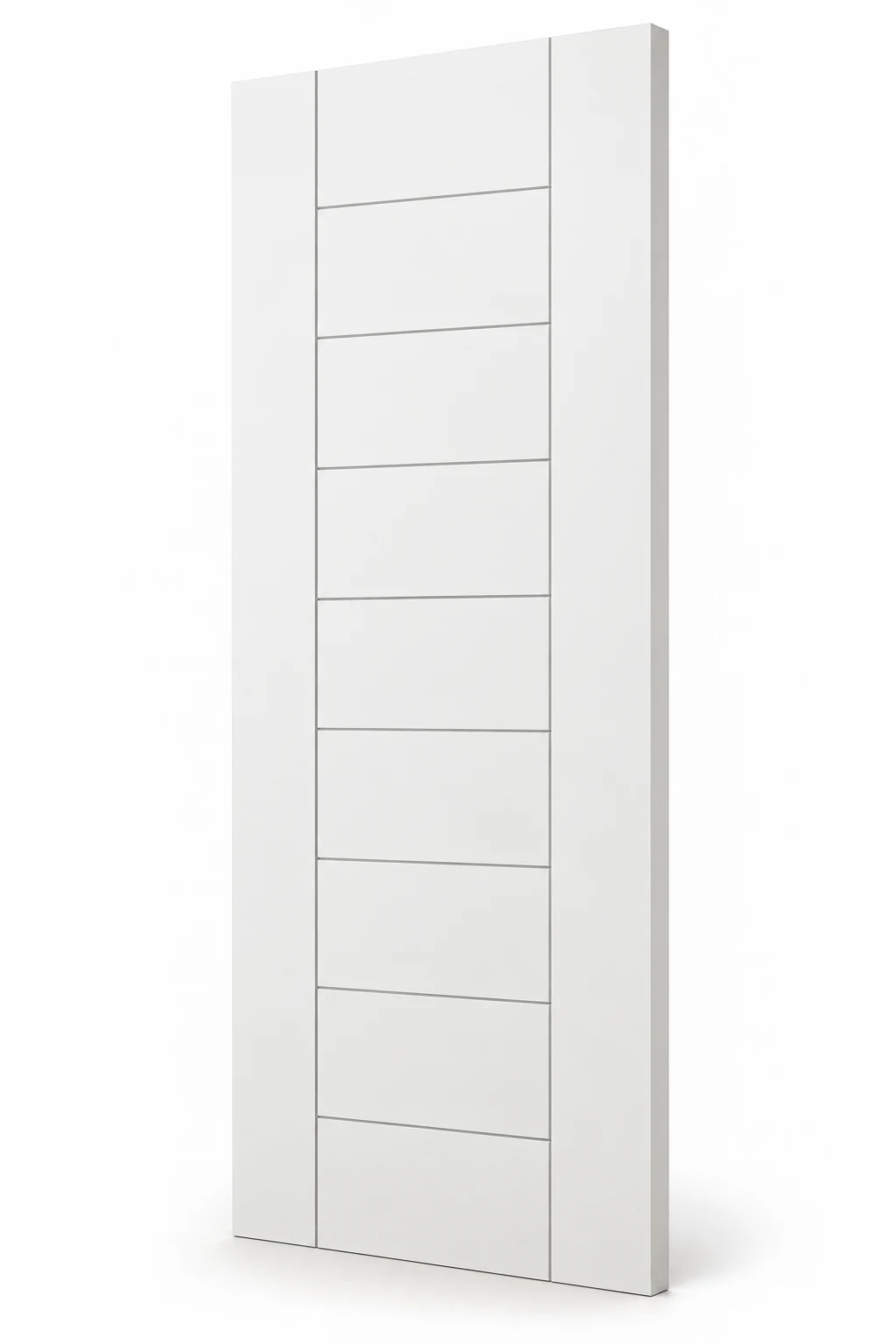

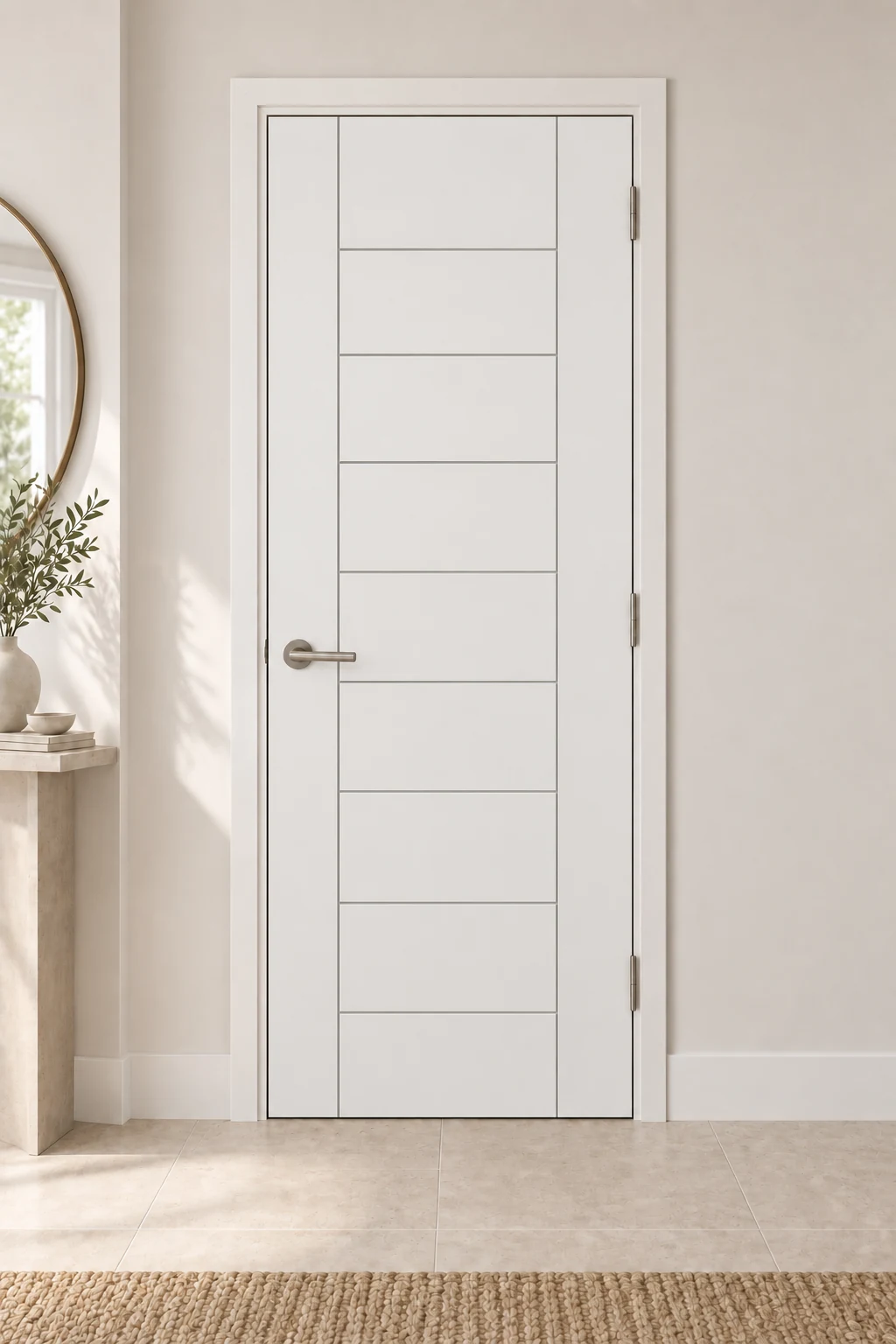

Lifestyle imageSelect either image to view the room setting or product angle.
Made to measureNon-fire rated
Signature Narrow Ladder
Signature Narrow Ladder non-fire-rated internal door from Hassock Wood. Supplied as a made-to-order internal door product. Contact the team if you need project-specific sizing or finish guidance.
Price per door£150.00Enter the finished door-leaf size below before adding this product to your basket.
Made to Measure
Factory Primed
British Made
Secure Checkout
01
Enter the required door size
Enter the finished door-leaf dimensions. These are stored against this exact product and order line.
Not sure what size to enter?Measure the finished door leaf — not the frame or structural opening.
How to measureManufacturing suitability can still be checked against the selected design where required.
02
Choose quantity
Doors with the same design and dimensions can be grouped on one basket line.
FinishWhite
Selected sizeEnter dimensions
Current total£150.00
03
Add to basket
Review the selected size and quantity, then add this configured door to your order.
- Door
- Signature Narrow Ladder
- Size
- Enter dimensions
- Quantity
- 1
- Total
- £150.00
Measure before ordering
How to measure your door leaf.
Enter the size of the finished door leaf itself. Do not enter the frame opening or structural opening as the door size.
↕
Measure the height
Measure the finished leaf from top edge to bottom edge at the left, centre and right.
▰
Check thickness
Measure the leaf thickness at more than one point and keep it with your order notes for technical review.
✓
Check before entering
If the measurements vary, there is no existing leaf, or you only have opening dimensions, contact us before ordering.
Important: The online width and height fields are for the finished door leaf. If you are measuring a bare frame or new opening, do not subtract fitting clearances yourself — speak to Hassock Wood first.
| Product code | HWL-ID-605 |
|---|---|
| Fire door | No — internal NFR range |
| Design family | Signature |
| Finish | White |
| Reference finished leaf | 1981 H × 762 W × 44 T mm |
| Reference thickness | 44 mm |
| Face treatment | Straight-groove / fluted detailing |
| Technical profile | 6 mm straight flat-bottom groove |
| Scheduled face features | 10 |
| Decorative depth | 4.0 mm absolute maximum decorative depth |
| Sizing rule | Different leaf sizes require a new dimensioned technical sheet; the design is not automatically scaled. |
| Technical status | Reference dimensions prepared for technical review; final manufacturing sign-off required. |
Technical information is based on the Hassock Wood internal NFR technical schedule. Reference geometry is proposed for technical review and final manufacturing sign-off.
Signature Narrow Ladder (HWL-ID-605) is an internal non-fire-rated design with 10 scheduled decorative features on the 1981 × 762 × 44 mm technical reference leaf. The scheduled face treatment uses 6 mm straight flat-bottom groove.
Decorative routing is limited to 4.0 mm maximum depth. The reference dimensions define the design intent; a different ordered leaf size requires a newly dimensioned technical sheet rather than simply scaling the pattern.
Your selected product, finished width, finished height and quantity remain attached to the order line.
Where an ordered size differs from the reference leaf, the design requires a newly dimensioned technical sheet before machining.
Standard lead time is 14 working days from order confirmation. Contact us for timed, phased or project-specific delivery requirements.
Standard lead time is 14 working days from order confirmation. For timed, phased or project deliveries, call 0800 699 0800 before ordering.
Is this a fire door?
No. This product is part of the internal non-fire-rated (NFR) door range. It must not be used where a certified fire-resisting doorset is required.
What size are the technical details based on?
The current technical schedule uses a 1981 mm high × 762 mm wide × 44 mm thick finished leaf as its reference geometry.
Can I order a different width or height?
You can enter the required finished leaf size on this page. Where it differs from the technical reference leaf, the design needs a newly dimensioned technical sheet before manufacture; feature positions are not automatically scaled.
How deep is the decorative routing?
The technical schedule sets 4.0 mm as the absolute maximum decorative depth. The production working depth must be set below that limit and validated against the final door construction.
Are hinge, lock and hardware positions included?
Not in the current face-design schedule. Rear-face pattern, handing, lock block, hinge positions and hardware drilling are confirmed separately before machining.
Are the product images dimensionally exact?
No. The current images are appearance previews. Final millimetre geometry and cut depth are controlled by the technical schedule and production review.
Need help with the opening?
